TENSOR Multi-Stud Tensioners: Precision Engineered for Reactor Upper Unit Nozzles and Steam Generators

TENSOR Multi-Stud Tensioners are specifically designed for critical applications such as reactor upper unit nozzles and steam generators.
Our Multi-Stud Tensioners are expertly crafted to meet the unique demands of our customers. Each tensioner is tailored to ensure optimal performance and reliability in any application.

Experience the precision and customization that TENSOR delivers with every product.

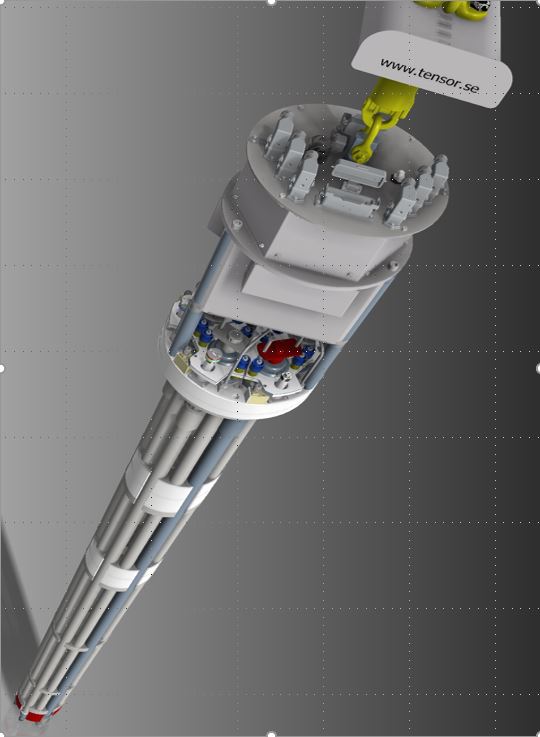

Introducing the TMT-6
The TMT-6 (formerly D2) is engineered for simultaneous de-tensioning and tensioning of six upper nozzle studs in just 7.5 minutes. This innovative solution combines gripping mechanisms for both the stud and nut, allowing for the simultaneous or independent rotation of studs and nuts. With real-time measurement of stud elongation, the TMT-6 ensures precision and reliability in every operation.

1. Description
   1. Designed specifically for critical applications, the TMT-6 simultaneously detensions and tensions 6 studs, optimizing operational efficiency and safety.
2. Operation
   1. The Tensor Multi-Stud Tensioner combines gripping mechanisms for the stud and nut, which allows the studs and nuts to rotate simultaneously or independently.
   2. The tool has an integrated stud elongation measurement system.
   3. Each stud can be operated separately.
   4. Each tensioner can be operated individually
3. Specifications
   1. Customized to the user’s application
4. Quality
   1.  ISO9001, ISO14001, ISO 45001.
5. Features/Benefits
   1. Simultaneous tensioning / de-tensioning all studs in the flange

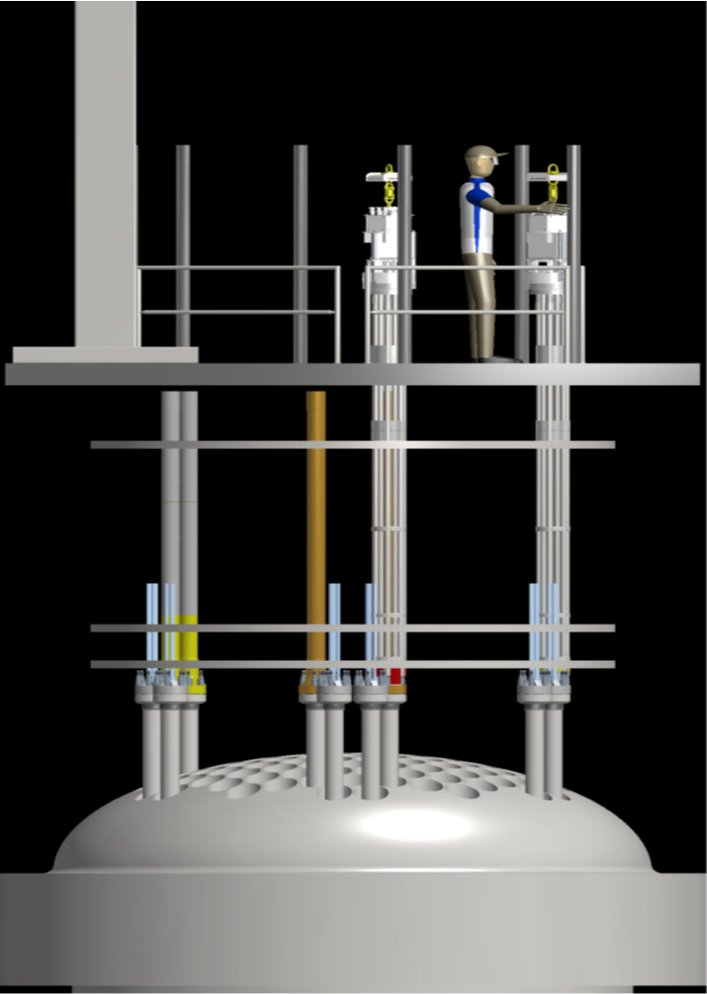

   2. Operated remotely from the flange and thereby significantly reduces dose for the operator
   3. Instant measurement results for quick adjustments to the right elongation

Tailored Solutions for Steam Generator Applications

TMT-M52 & TMT-M60 Horizontal Tensioners
Designed specifically for steam generator applications, the TMT-M52 and TMT-M60 Horizontal Tensioners provide exceptional performance and reliability. These innovative tools ensure precise tensioning and de-tensioning of multiple studs, optimizing operational efficiency and safety.

1. Description
   1. Designed specifically for critical applications, Tensor Multi-Stud Tensioners simultaneously de-tension and tension multiple studs, optimizing operational efficiency and safety.
   2. Hydraulic hoses are located away from the operator to safeguard the working conditions
2. Operation
   1. The tool has an integrated stud elongation measurement system.
   2. If needed, each tensioner can be operated separately.
3. Specifications
   1. Customized to the user’s application
4. Quality
   1. ISO9001, ISO14001, ISO 45001.
5. Features/Benefits
   1. Simultaneous tensioning/de-tensioning all studs in the flange
   2. Instant measurement results for quick adjustments to the right elongation


TMT-M48 Vertical for Steam Generator (Mounted on a mockup)

1. Description
   1. Designed specifically for vertical flanges in tight spaces
   2. Hydraulic hoses are located away from the operator to safeguard the working conditions
2. Operation
   1. The tool has an integrated stud elongation measurement system.
   2. If needed, each tensioner can be operated separately.
3. Specifications
   1. Customized to the user’s application
4. Quality
   1. ISO9001, ISO14001, ISO 45001
5. Features/Benefits
   1. Simultaneous tensioning/de-tensioning of all studs in the flange
   2. Quick mounting on the flange due to the lightweight and modular design
   3. Time-efficient assembly, tensioning or de-tensioning and disassembly
   4. Instant measurement results for quick adjustments to the right elongation

Choose TENSOR for advanced tensioning solutions that meet the highest industry standards.
